Home » Products » Flour Blending and Packing Equipment » Hammer Mill

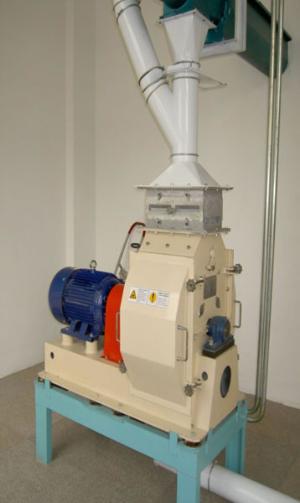

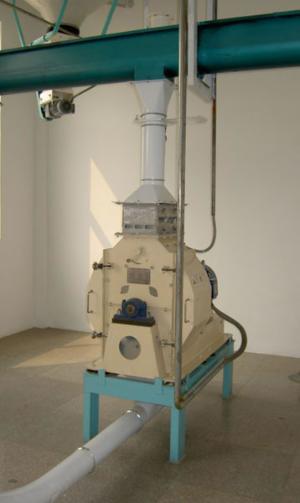

Hammer Mill

As a grain milling machine, our SFSP series hammer mill can smash various kinds of granular materials like corn, sorghum, wheat, beans, crushed soy bean pulp cake, and so on. It is suitable for industries like fodder manufacturing and medicine powder production.

Feature
1. The special smashing solution has an excellent smashing efficiency which is 45%-90% higher than that of common mills.
2. Our hammermill is suitable for producing aquatic feed which is in relatively smaller size. Specifically, the hammer mill can handle small size particles with a diameter of 1mm or even 0.8mm, while the blocking phenomenon is greatly reduced.
3. The ventilation system is properly adjusted so that the material can go through the sieve quickly, and the pulverization compartment and the material can be kept at low temperature. Ultimately, the production capacity is greatly enhanced.
4. The material feeding speed is adjustable, and the sieves in this grain grinder can be conveniently changed.
5. The quantity of the hammer is doubled or tripled, making this hammer mill more versatile. The processed products can be in either coarse or fine granules. Besides the machine structure and processing procedure are both simplified, saving you much investment on equipment purchasing.

Equipment parameter

Type Capacity Main Shaft Rotor Diameter Power Weight Shape Size
t/h r/min mm kW kg mm
SFSP56×40 4-5 2950 560 37 700 1586×740×1148
SFSP65×45 5-6 2950 650 45/55 800 1720×870×1320

Note
The capacity is based on maize processing. Moisture content ≤ 14%, Volume weight ≥ 0.72 t/m3, Sieve mesh = 3.0mm, Percentage of opening≥33%.
