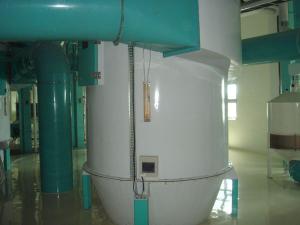

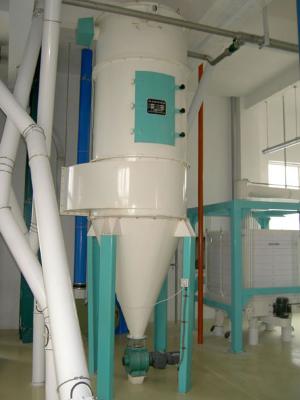

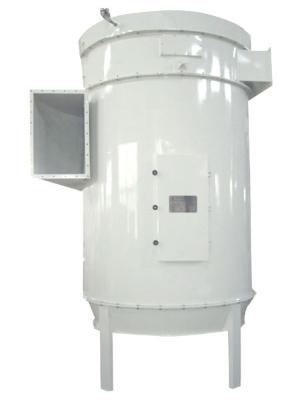

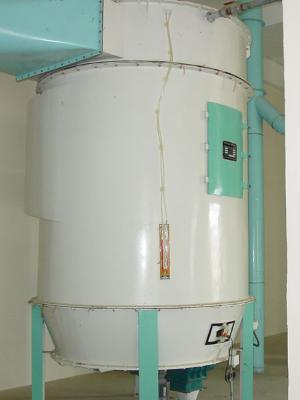

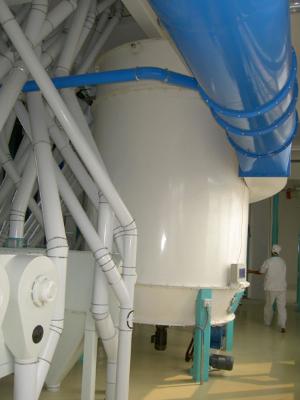

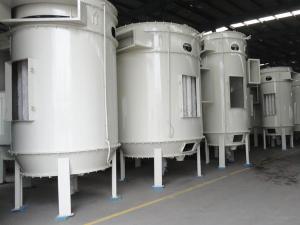

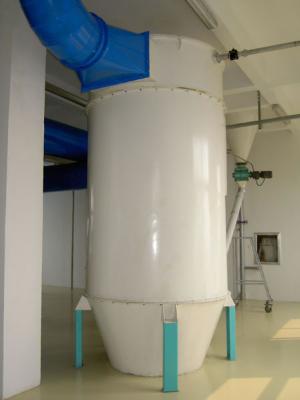

Pulse Jet Filter

The pulse jet filter usually work together with a centrifugal fan. It takes in the air and adsorbs the dust in the air by its filtering cloth bag. Then the dust will be blown off by the pulse air current from the device's top, thus the dust is collected into the pulse jet bag filter rather than entering the ambient environment of the workshop.

The pulse jet filter is available in high pulse pressure type and low pulse pressure type, and plug-in type. You can make the choice according to your reality. All of these types of pulse dust collector have desirable dust removing efficiency and are easy to be maintained. Thus far, they are widely used in the aspiration system and pneumatic conveying system.

TBLM Type Low Pressure Jet Filter

Type Sleeves Length
(mm)
Air Volume
(m³/h)
Sleeves Area
(m²)
Power(kW) Weight
(kg)
Air Lock Dust Scraper
TBLM-26 1800
2000
2400
1032-5160
1146-5730
1380-6900
17.2
19.1
23
0.75   710
749
794
TBLM-52 1800
2000
2400
2112-10560
2292-11460
2766-13830
35.2
38.2
46.1
1.1 1.5 1230
1500
1700
TBLM-78 1800
2000
2400
3090-15450
3438-17190
4146-20730
51.5
57.3
69.1
1720
1800
2000
TBLM-104 1800
2000
2400
4116-20580
4590-22950
5526-27630
68.6
76.5
92.1
2200
2500
3000
TBLM-130 1800
2000
2400
5292-26460
5934-29670
7056-35280
88.2
98.9
117.6
2870
3000
3500
TBLM-168 1800
2000
2400
7596-37980
5934-29670
9114-45570
113.9
126.6
151.9
1.5×2 2.2 3540
3721
3925

TBHM Type High Pressure Jet Filter

Type Sleeves Quantity
(PC)
Air Volume
(m³/h)
Sleeves Area
(m²)
Solinoid Valve Quantity
(PC)
Rising Air Pressure
(MPa)
Air Filtrating
Speed
(m/min)
Sleeves Size
D×L
(mm)
Resistence
(Pa)
TBHM-24 24 3270-4360 18.2 4 0.4-0.6 3-4 ø120×2000 <980
TBHM-36 36 4950-6600 27.5 6
TBHM-48 48 6520-8680 36.2 8
TBHM-60 60 8130-10850 45.2 10
TBHM-72 72 9800-13200 54.3 12
TBHM-84 84 11400-15200 63.3 14
TBHM-96 96 13000-17400 72.5 16
TBHM-108 108 14300-19540 81.4 18
TBHM-120 120 16300-21600 90.5 20

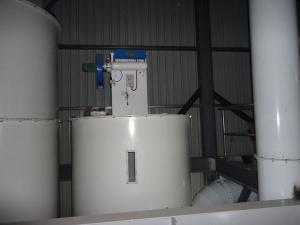

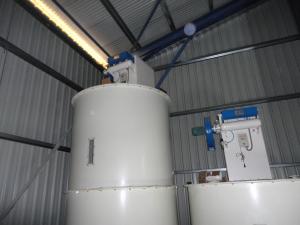

TCR Type Inserted High Pressure Jet Filter

Type Sleeves Area
(m²)
Air Voloume
(m³/min)
Power
(kW)
TCR-4/8 1.24 223-298 1.1
TCR-4/12 1.86 334-447 1.1
TCR-6/8 1.86 334-447 1.1
TCR-6/12 2.76 496-663 1.1
TCR-9/8 2.8 504-672 1.5
TCR-9/12 4.14 745-994 1.5
TCR-9/16 5.76 1036-1383 1.5
TCR-16/12 6.88 1238-1652 2.2
TCR-16/18 10.24 1843-2458 2.2
TCR-16/24 13.76 2476-3303 2.2
(Rectangular Inserted High Pressure Jet Filter is also available)
